10 kW Pure Sine Wave Inverter
Inverter

10 kW Pure Sine Wave Inverter

$2,100.00

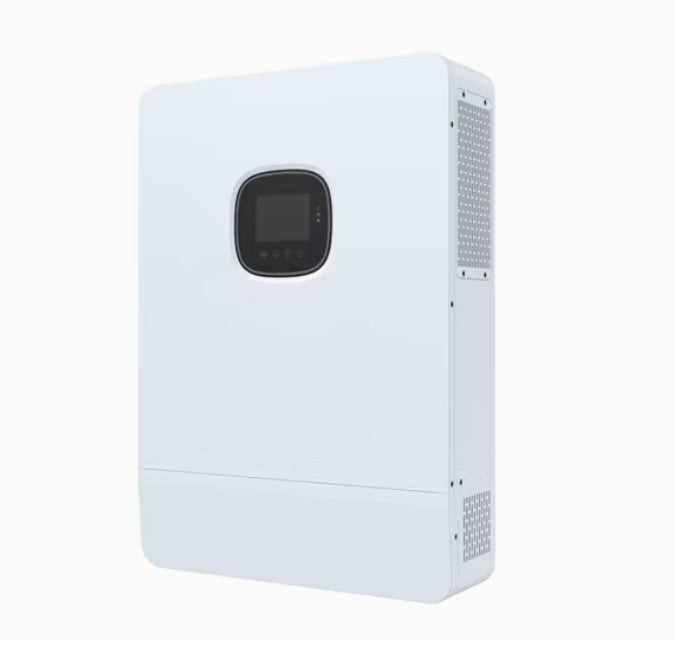

The EcoPowerWall 10 kW Inverter delivers 10,000W of continuous pure sine wave AC output — enough to power a 3-bedroom home's essential loads simultaneously. Featuring a built-in MPPT solar charge controller, it connects directly to your solar array and battery bank for a seamless all-in-one energy hub.

Key Specifications

  • Continuous output: 10,000W
  • Peak output: 20,000W (surge)
  • Output waveform: Pure sine wave
  • Input voltage: 48V DC
  • Output voltage: 120V/240V AC
  • MPPT solar input: 145V max VOC, 80A
  • Efficiency: 95.5%
  • Operating temperature: -20°C to +55°C
  • Warranty: 2 years

What It Powers

The 10 kW inverter handles standard home loads including central air conditioning, refrigerators, washing machines, lighting, routers, and entertainment systems — all running simultaneously. Compatible with the EcoPowerWall 16 kWh and 28.7 kWh LiFePO4 batteries.

Solar Integration

The built-in MPPT charge controller accepts up to 8 kW of solar input, automatically prioritizing solar charging before drawing from the battery or grid. Supports grid-tie, off-grid, and hybrid operating modes with automatic transfer switching in under 20ms.

Perfect For

  • Homes up to 2,500 sq ft with standard appliance loads
  • Solar arrays up to 8 kW
  • Off-grid cabins and rural properties
  • Whole-home backup power during outages
Get a Quote
Warranty Included Ships in 3–5 Days USA Support
